Electronic Interlock Pass Box 110KG Static/Dynamic Pass Box with cost-effective
  • Electronic  Interlock Pass Box 110KG Static/Dynamic Pass Box with cost-effective
  • Electronic  Interlock Pass Box 110KG Static/Dynamic Pass Box with cost-effective
  • Electronic  Interlock Pass Box 110KG Static/Dynamic Pass Box with cost-effective
  • Electronic  Interlock Pass Box 110KG Static/Dynamic Pass Box with cost-effective
  • Electronic  Interlock Pass Box 110KG Static/Dynamic Pass Box with cost-effective
  • Electronic  Interlock Pass Box 110KG Static/Dynamic Pass Box with cost-effective

Electronic Interlock Pass Box 110KG Static/Dynamic Pass Box with cost-effective

Place of Origin wuhan, China
Marca OEM
Certificação CE ISO
Model Number pass box
Detalhes do produto
Condition:
New
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Hospital, Electronics, Laboratories, Clean Room, Dust-free Workshop
Weight (KG):
110
Showroom Location:
None
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
1 Year
Core Components:
PLC, Electronic Interlock, Magnetic Lock
Warranty:
1 Year
Pass Box:
Static Pass Box
Outer Dimension(mm):
600(W)*460(D)*530(H)
Inner Dimension(mm):
400(W)*400(D)*400(H)
Pre-Filter:
90%@10um
HEPA Filter:
99.995%@0.3um
Power supply:
220V,50Hz (can be customized)
Installation:
No need
UV Lamp:
Yes
Tightness:
EVA sealing to ensure the tightness
Termos do pagamento & do transporte
Minimum Order Quantity
1Pcs
Preço
$950.00/sets 1-4 sets
Packaging Details
Wooden Box
Delivery Time
15 work day
Payment Terms
T/T, L/C
Descrição do produto

Clean Room Dust-free Electronic Interlocking Static Pass Box with Weight of 110KG

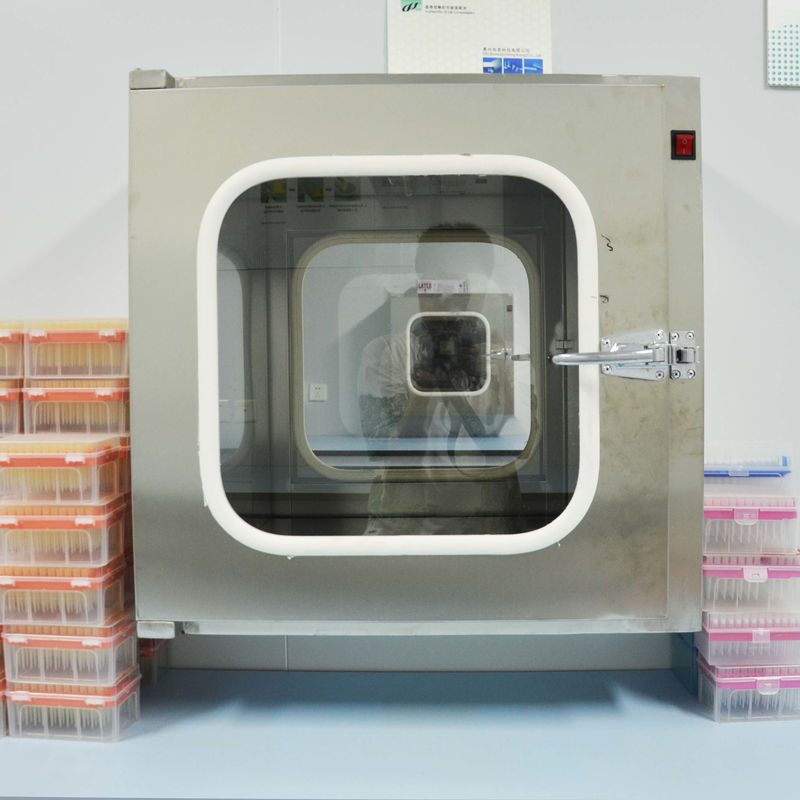

Cleanroom Static Pass Box

Electronic  Interlock Pass Box 110KG Static/Dynamic Pass Box with cost-effective 0

Electronic  Interlock Pass Box 110KG Static/Dynamic Pass Box with cost-effective 1

Electronic  Interlock Pass Box 110KG Static/Dynamic Pass Box with cost-effective 2



Electronic  Interlock Pass Box 110KG Static/Dynamic Pass Box with cost-effective 3

Type Static pass box  Dynatic pass box
External dimension(mm) 760*660*660(W*H*D) 800*1200*690(W*H*D)
Internal dimension(mm) 600*600*600(W*H*D) 600*600*600 (W*H*D)
External material SUS304, baking finished
Internal material SUS304 stainless steel
Door Lock Mechanically or electronically interlocked
Noise <65dBA <65dBA
Power supply 220V 50Hz 280W 220v 50/60HZ, 280W
Efficiency 99.99%~99.995% 99.99~99.995%
Air filter H13 or H14 optional H13 or H14 optional
Remark Customized design is available



Electronic  Interlock Pass Box 110KG Static/Dynamic Pass Box with cost-effective 4
 Features:

1. Sealed Construction: The static pass box is designed with a tight seal to prevent the entry of contaminants from the outside environment.
2. Smooth Surfaces: Both the interior and exterior have smooth finishes, reducing the potential for particle accumulation and facilitating easy cleaning.
3. Static-Dissipative Materials: Made from materials that help dissipate static electricity, minimizing the attraction of dust particles.
4. Transparent Viewing Window: Allows for visual inspection of the contents without opening the box, maintaining the integrity of the clean environment.
5. Robust Structure: Constructed with sturdy materials to withstand regular use and provide long-term durability.
6. Simple Operation: Features an intuitive design for straightforward operation by users.

Applications:

1. Cleanroom in Electronics Manufacturing: For transferring components and tools between different clean areas during the production of electronic devices.
2. Biomedical Laboratories: In the handling and transfer of biological samples and research materials.
3. Pharmaceutical Facilities: To move drugs, packaging materials, and small equipment within the cleanroom.
4. Food Processing Plants: Ensuring the safe transfer of food ingredients and products in hygienic conditions.
5. Cosmetic Production: For the transfer of cosmetic materials and finished products.

Advantages:

1. Maintains Cleanliness: Helps preserve the cleanliness and sterility of the cleanroom by controlling the transfer of items.
2. Cost-Effective: Offers an economical solution for material transfer within cleanroom environments.
3. Space Saving: Compact design allows for efficient use of space in the cleanroom.
4. Low Maintenance Requirements: Simple structure and durable materials result in reduced maintenance efforts and costs.
5. Improves Workflow Efficiency: Facilitates a smooth and organized material transfer process, enhancing productivity.

Packing and Transportation:
Electronic  Interlock Pass Box 110KG Static/Dynamic Pass Box with cost-effective 5


220v 50/60HZ, 280W
